1.  Nozzle-atomizer and charging system– to attach the charged oil mist to the metal wire surface.
2.  High voltage power supply system– to charge oil mist and generate electrostatic adsorption effects.
3.  Oil supply system– including oil tank, filter and heater.
4.  Precision metering pump–metering oil supply amount to nozzles under different speed.
5.  Control system– HMI setting and PLC automatic control;.
6.  Threading mechanism – to facilitate the metal wire to penetrate the oiling equipment.
7.  Oiling adjusting system– to adjust the oil volume under coating weight and synchronous line speed.
8.  Waste oil recycling system– to collect and filter the unattached oil for recycle.

      •  Power supply ：    220VDC/50Hz/1PH
      •  High voltage：       50KVDC@5mA
      •  Coating range：     20 – 260 mg/m² per side
      •  Coating width：      ¢0.9 – ¢2.4mm
      •  Minimum speed：   10 MPM
      •  Maximum speed：  1500 MPM
      •  Power consumption： 5Kw

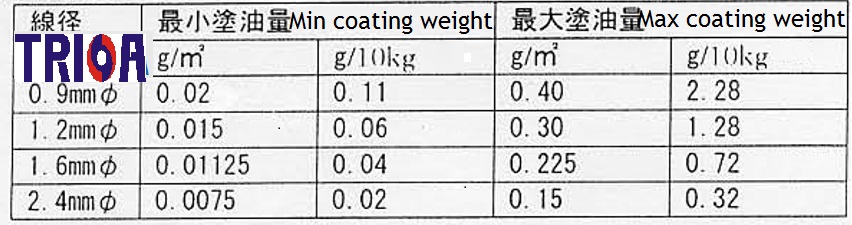

Coating weight according to wire diameter:



Outline Diameter: 1000mmX850mmX1200mm
Total weight : 150kg

• Flux core welding wire
• Stainless metal welding wire
• Aluminum welding wire
